Quick Details

  • Condition: New
  • Place of Origin: Tianjin, China (Mainland)
  • Brand Name: ME
  • Model Number: ZX50A&ZX50C
  • Type: Vertical
  • CNC or Not: Normal
  • Voltage: 220V; 50/60Hz
  • Power(W): 1.5 /(0..85/1.5)Kw
  • Dimension(L*W*H): 400*230*380mm
  • Weight: 460/470KG
  • Certification: CE,ISO9001:2008
  • Warranty: 18 Months
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Brand: Can OEM
  • Color: Customized
  • Max. Drilling Dia. (mm): 50mm
  • Max. Horizontal Milling Dia.: 100mm
  • Max. Vertical Milling Dia.: 32
  • Max. Boring Dia.: 100
  • Spindle Taper: MT4,R8
  • Spindle Speeds Range: (5 step) 270-2400
  • Spindle Travel: 120
  • Table Size (mm): 800*240

Packaging & Delivery

Packaging Details Wooden Cases/Pallets
Delivery Time 10-20 Days

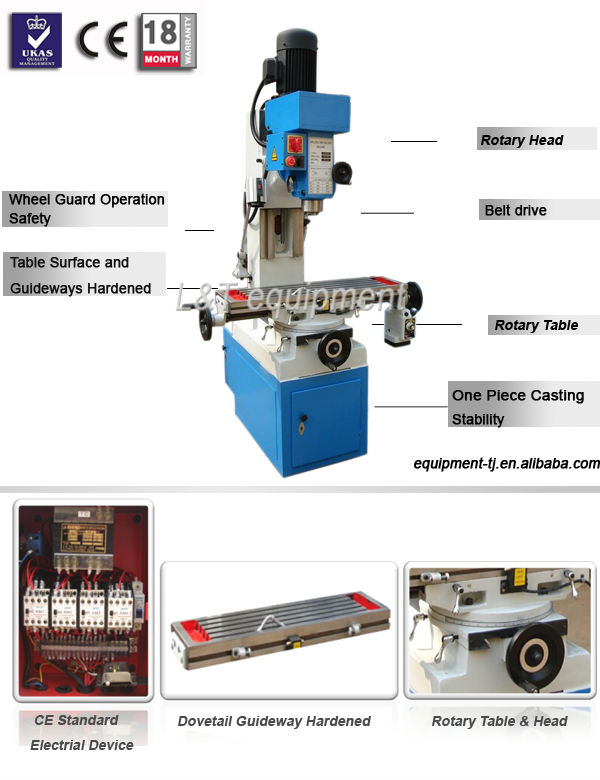

  ZX50A Mini Small Drilling Milling Machine



We Manufacture. Stock. Distribute

Hot Sale Easy Operation.

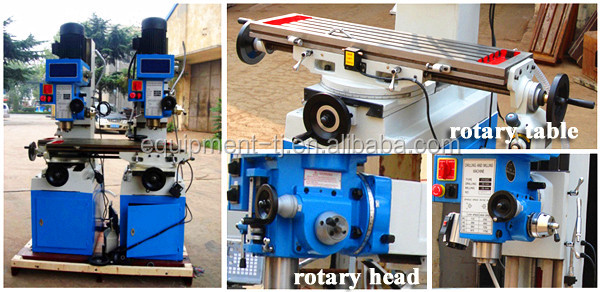

Rotary Table and Head.

CE Iso Certificated.

Good helper for your machining and maintanance work in your workshops.

L&T 20-Years Export Experience.

Knowledge and experience make the difference.







Product Description







Specifications

ZX50A milling machine

ZX50C milling machine

Max. Drilling Dia. (mm)

50

50

Max. Horizontal Milling Dia.

100

100

Max. Vertical Milling Dia.

32

32

Max. Boring Dia.

100

100

Spindle Taper

MT4,R8

MT4,R8

Spindle Speeds Range

(5 step) 270-2400

(5 step) 115-1750

Spindle Travel

120

120

Table Size (mm)

800*240

800*240

Table Travel (mm)

400*230*380

400*230*380

Main Motor Power (KW)

1.5

0.85/1.5

N.W./G.W.(Kg)

460/540

470/550

MILLING MACHINE

Sample Picture







Accessories

Optional Cutter











Packaging & Shipping



Standard Packing List



No.

Description

Specification

Qty

1

ZX50A/ZX50C Milling Machine



1

2

Drilling Chuck

16

1

3

Hexagon Spanner

5

1

4

Wedge Shifter



1

5

Reduction Sleeve



1

6

Draw Bar



1

7

Spindle Bar



1

8

Wrench

S21-24

1

9

Machine Vice

160

1

10

Milling Chuck



1

11

Operation Manual



1

12

Quality Certificate



1

13

Packing list



1



 * You can also choose optional accessories, please contact our sales for details.



Wooden Cases / Pallets
