Quick Details

  • Condition: New
  • Place of Origin: Tianjin, China (Mainland)
  • Brand Name: ME
  • Model Number: ZXTM-40
  • Type: Vertical
  • CNC or Not: Normal
  • Voltage: 220V/240V/380V; 50-60Hz
  • Power(W): 1500
  • Dimension(L*W*H): Table Size (mm):800*240MM
  • Weight: N.W./G.W.:410/460KG
  • Certification: CE, ISO9001:2008
  • Warranty: 12 months
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Clour: Customized

Packaging & Delivery

Packaging Details Wooden Cases/Pallets
Delivery Time 10-20 days

Specifications

L&T Equipment ZXTM-40 Milling Machine Tools
Competitive Price! Fast Delivery Time!
We Manufacture. Stock. Service.

   L&T Equipment ZXTM-40  Milling Machine Tools

machine tools

We Manufacture. Stock. Service.

CE ISO Certificated

Easy Operation

Good helper for your machining and maintanance work in your workshops.


Product Description



Specifications

Specifications

ZXTM-40 drilling milling machine

ZX7040

Max. Drilling Dia. (mm)

40

40

Max. Horizontal Milling Dia.

100

100

Max. Vertical Milling Dia.

20

20

Distance from Spindle Nose to Table

550

550

Distance from Spindle Axis to Column

300

300

Spindle Travel

120

120

Spindle Taper

MT4

MT4

Spindle Speed Range

(9 step) 168-3168

(9 step) 168-3168

Table Size (mm)

800*240

800*240

Table Travel  (mm)

400*250

400*250

Main Motor Power (KW)

1.5

1.5

N.W./G.W.(Kg)

410/460

410/460

milling machine milling drilling machine mini drilling milling machine

ZXTM-40 Milling Machine Standard Packing List

No.

Description

Specification

Qty

1

Milling Machine ZXTM40



1

2

Drilling Chuck

16

1

3

V-Belt                          (On Machine)

A889

2

4

Hexagon Spanner

5

1

5

Wedge Shifter



1

6

Reduction Sleeve

MT 4/3       4/2

1

7

Draw Bar



1

8

Spindle Bar



1

9

Wrench

S18-21

1

10

Grinding Wheel



1

11

Boring Bar



1

12

Grinding Wheel



1

13

Machine Vice

125

1

14

Milling Chuck

MT4

1

15

Operation Manual



1

16

Quality Certificate



1

17

Packing list



1

milling machine milling drilling machine mini drilling milling machine

 * You can also choose optional accessories, please contact our sales for details.

milling machine milling drilling machine mini drilling milling machine

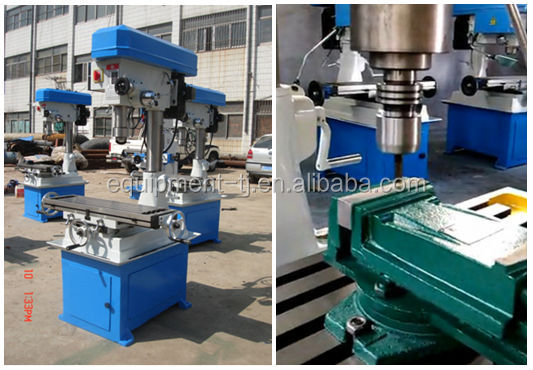

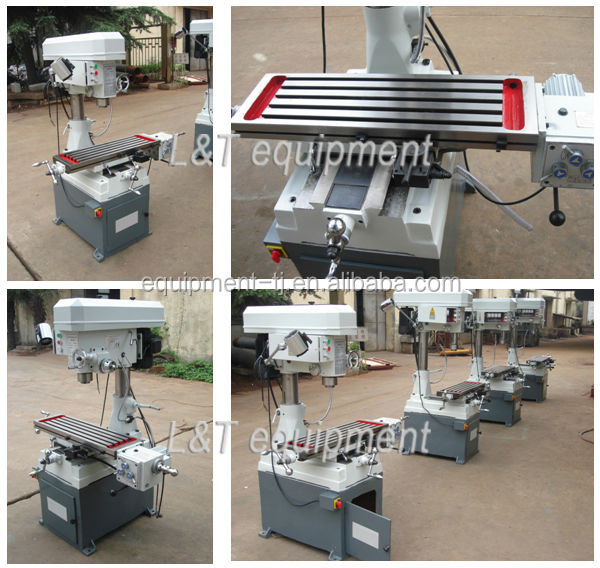

Sample Picture

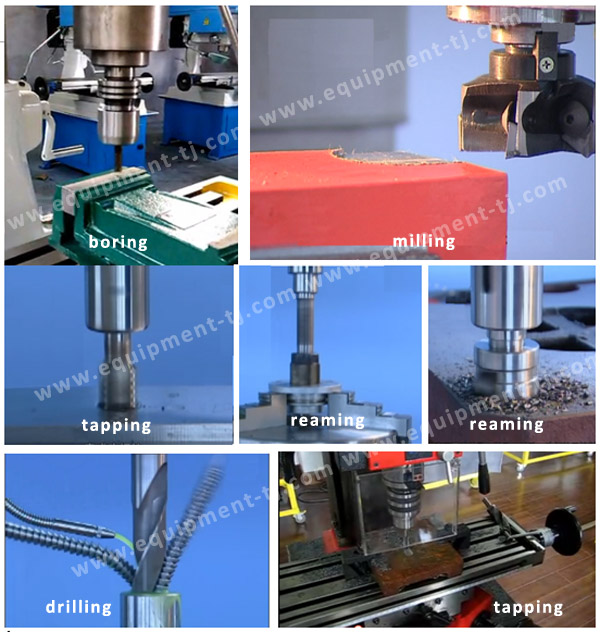

 Applications

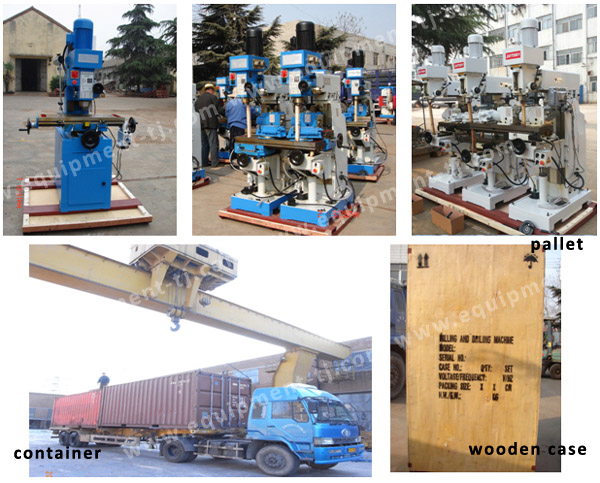

Packaging & Shipping

machine tools

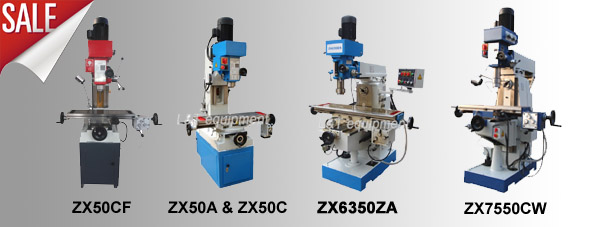

 Other Hot Sale Model Choice

machine tools

                 Click here               Click here                  Click here                     Click here




Company Information

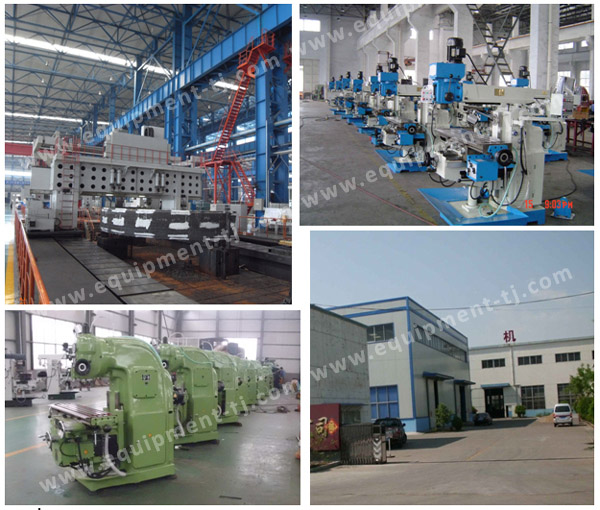

Our Workshop
