For Sale ZX50CF Economic Vertical Drilling Milling Machine

FOB Reference Price:Get Latest Price
US $1,400-2,000 / Set | 1 Set/Sets (Min. Order)
Supply Ability:
50 Set/Sets per Month
Port:
China Port
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Place of Origin:
Tianjin, China (Mainland)
Brand Name:
ME
Model Number:
ZX50CF
Type:
Vertical
CNC or Not:
Normal
Voltage:
220V;50/60Hz
Power(W):
800/1500
Dimension(L*W*H):
Table Size:800*240mm
Weight:
600kg
Certification:
CE, ISO9001:2008
Warranty:
18 Months
After-sales Service Provided:
Engineers available to service machinery overseas
Color:
Customized
Brand:
Customized
Max. Drilling Dia. (mm):
50mm
Max. Horizontal Milling Dia.:
100
Max. Vertical Milling Dia.:
25
Max. Boring Dia.:
120
Packaging & Delivery
Packaging Details
Wooden Cases/Pallets
Delivery Time
10-20days

  Hot Sale ZX50CF Economic Mini Vertical Milling Machine


Product Description



Main Feature



Belt-Drive Milling Head

Dovetail Table Guideways Withstand Larger Overturning Moment

Work Table Surface and Guideways Hardened by Supersonic Frequency Quenching (Depth 2-4MM)

Work Table and Guideways Made by HT200-250 High Strength Cast Iron

Rotary Head

Digital Readout (optional)

Actuator (optional)

CE ISO Certificated

18 Months Warranty

Professional Design, Easy Operation

Good helper for your machining and maintanance work in your workshops



Specifications

Specifications

ZX50CF Milling Machine

ZX50F Milling Machine

Max. Drilling Dia. (mm)

50

50

Max. Horizontal Milling Dia.

100

100

Max. Vertical Milling Dia.

25

25

Max. Boring Dia.

120

120

Max. Tapping Dia.

M16

M16

Spindle Taper

ISO30, MT4

ISO30, MT4

Spindle Speeds Range

115-1750(8)

230-1825(8)

Spindle Travel

120

120

Table Size (mm)

800*240

800*240

Table Travel (mm)

400*230*380

400*230*380

Main Motor Power (KW)

0.85/1.5

0.85/1.5

N.W./G.W.(Kg)

500/600

500/600

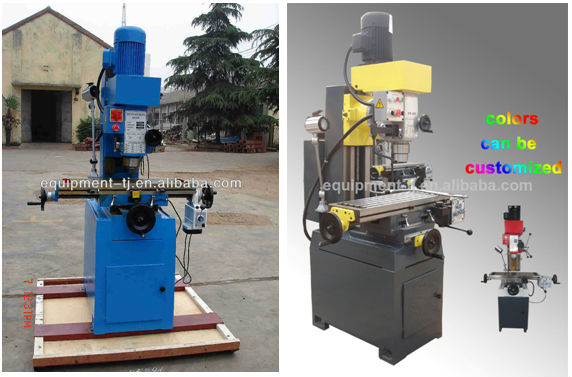

Sample Pictures

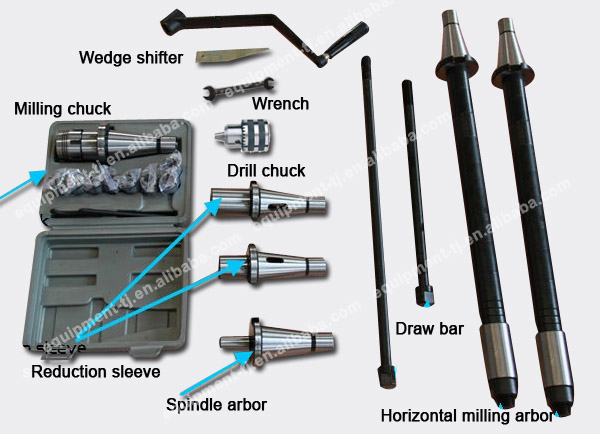

Aceessories

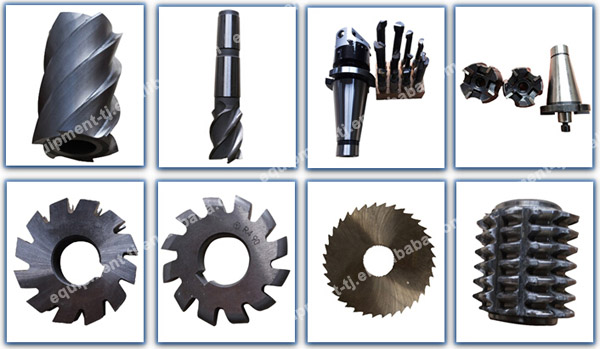

Optional Cutters









Packaging & Shipping



Standard Packing List



No.DescriptionSpecificationQty
1Milling Machine ZX50CF 1
2Drilling Chuck161
3Hexagon Spanner51
4Wedge Shifter 1
5Reduction Sleeve 1
6Draw Bar 1
7Spindle Bar 1
8WrenchS21-241
9Machine Vice1601
10Milling Chuck 1
11Operation Manual 1
12Quality Certificate 1
13Packing list 1



* You can also choose optional accessories, please contact our sales for details.

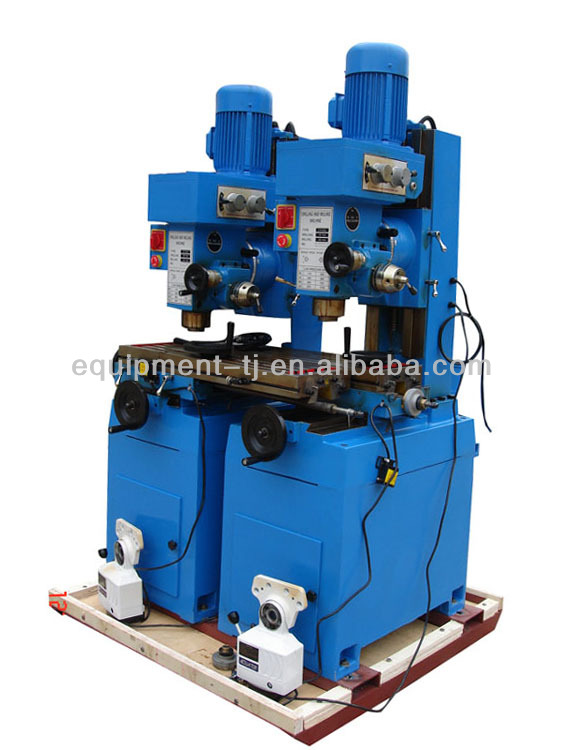

Wooden Cases / Pallets

 hine

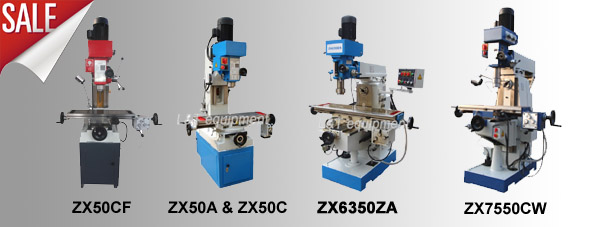

Other Hot Sale Model Choices
